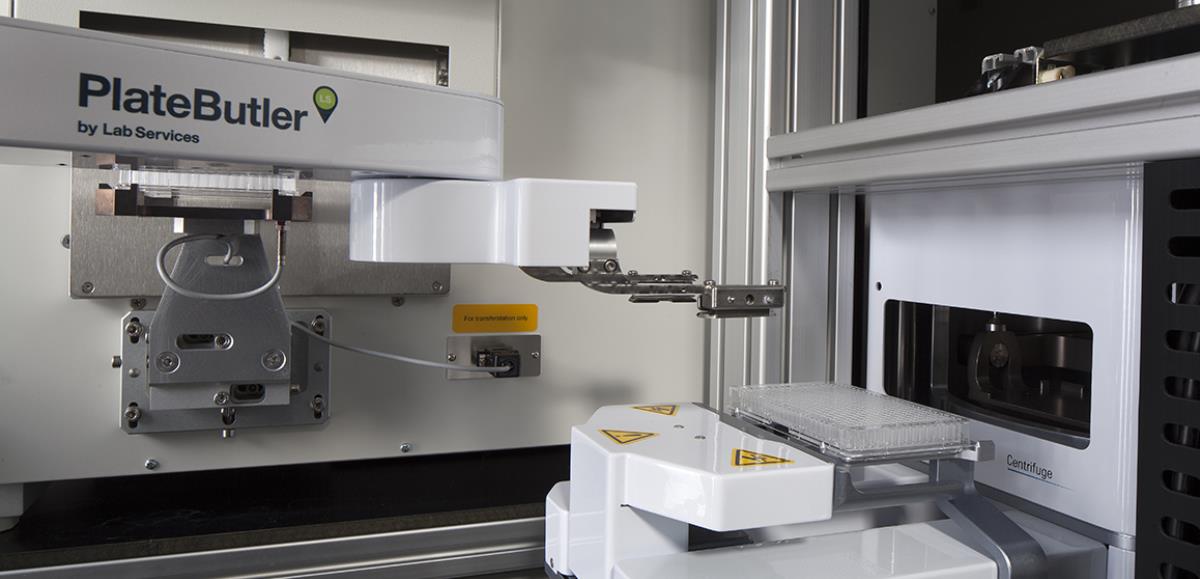

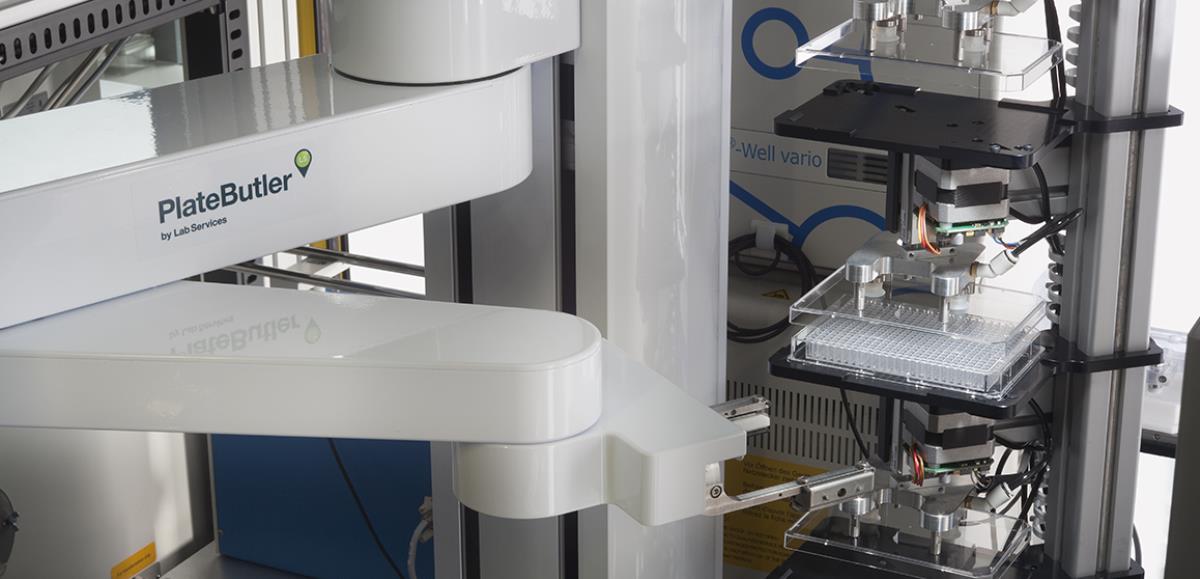

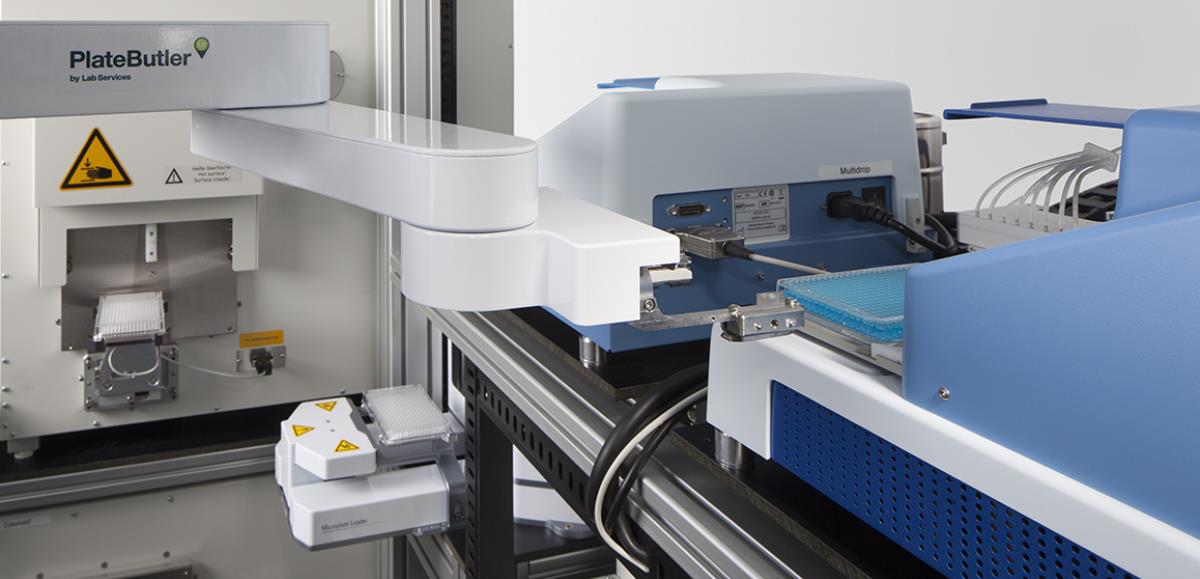

PlateButler® PreciseFlex: a revolution in sample handling

More and more laboratories are integrating their devices into automated systems. To ensure optimum integration it is essential that you have a robot that makes fluid, reliable movements and can reach many stations in a very small workspace. The PlateButler ® PreciseFlex reduces cycle times by using the most efficient movements with the lowest possible noise.
The PlateButler® PreciseFlex is a fully self-contained unit with inbuilt controllers for robot and gripper, inside and outside. Free-mode teaching saves time when compared to use of a pendant. The noiseless, high-performance servomotors start the robot up without moving it. The design thus reduces costs and takes up less space, without making any concessions in terms of performance or options. An ideal solution for situations where size and budget matter.

Contact us for more information
Key features
  • Simple free-mode teaching
  • Reduces cycle times to a minimum
  • Highly efficient station-to-station movements
  • Works with the unique and sophisticated PlateButler® software V3
  • WYSIWYG ... no additional controller!
Product specifications
  • Movement Radius
  • Z Height: 400 or 750 mm
    Options for extended radius
    Linear modules: 1.0 m, 1.5 m and 2.0 m versions
  • Precision
  • ± 0.2 mm
  • Loading Capacity
  • 0.5 – 1 kg including gripper
  • Power
  • 120/240VAC, 50/60Hz
  • Communication
  • Ethernet, RS-232, RS-485 and Digital I/O
  • Control Interface
  • A web-based user interface supports the local or remote control via a browser that is connected to an integrated webserver
