Disrupter with better than 95 percent efficiency

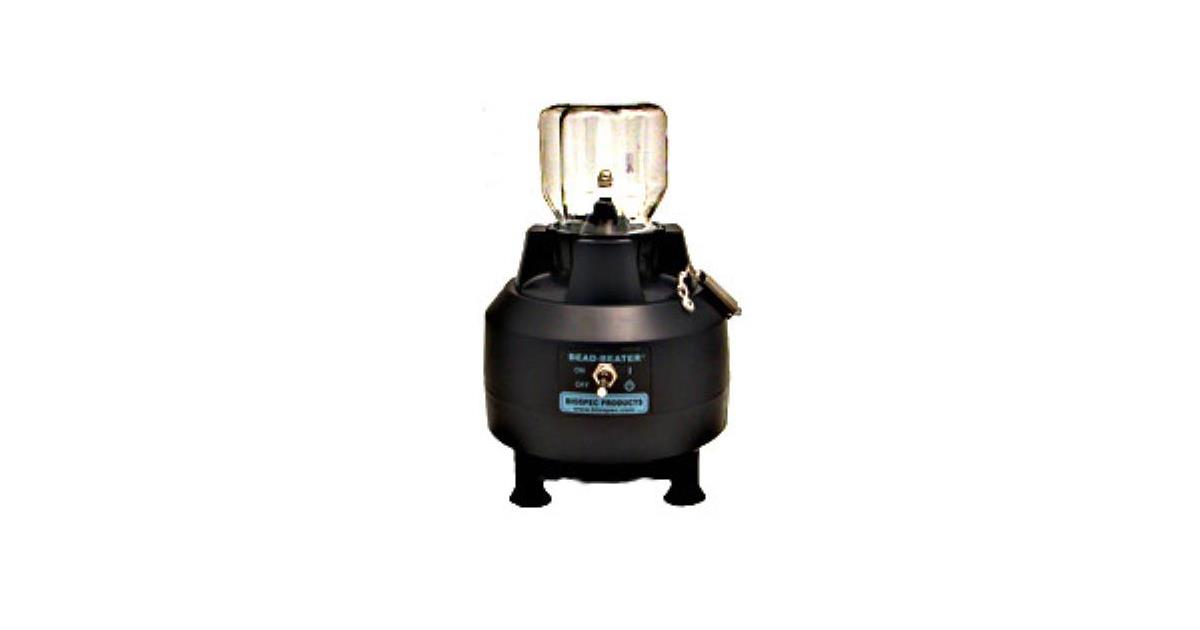

The BeadBeater comes complete with a 350 ml polycarbonate chamber, rotor assembly, motor base, ice-water cooling jacket (not shown) and one pound of glass beads of your choice.
For additional accessories please contact our sales department.Indicate your glass bead choice by adding -101, -105 or -110 (0.1, 0.5, or 1.0 mm) to the end of the catalog number (example: 1107900-105). See our Bead and Vial options in the Biospec_Beads_Overview. Bead compositions other than glass should be order separately.The BeadBeater disrupts microorganisms, single-cell preparations and pulverized plant and animal tissue with better than 95 percent efficiency. Up to 80 grams (wet weight) of cells can be processed in a typical three minute run. Relying on a unique crushing or cracking action rather than high shear forces found with a French Press or sonicator, a Teflon impeller rotating at high speed forces thousands of minute glass beads to violently collide in a special clover-leaf shaped vessel. Cells are disrupted quickly, efficiently and safely in the sealed system. The apparatus is easy to clean, has a small footprint, requires no auxiliary supplies or equipment and is essentially maintenance free. Beads settle out in seconds and are reusable.  The apparatus is easy to clean, has a small footprint, requires no auxiliary supplies or equipment and is essentially maintenance free.  Beads settle out in seconds and are reusable.
Other information

CONTROLING SAMPLE WARMING. Like many mechanical cell disruption techniques, the Beadbeating process generates heat. In general for every minute of beadbeating there is a 10 deg rise in sample temperature. Should that be a problem, the ice-water jacket included with the BeadBeater helps keep this temperature increase under control. Superior control is achieved using an accessary stainless steel or aluminum sample chamber. *Rick Hansen at Solid Tech Animal Health recently suggested another way to keep the sample chamber cold: “We affix small freezer pack gels with a rubber band around the s. s. chamber just before firing up the Beadbeater.”

OPERATING INSTRUCTIONS

Neem contact met ons op voor meer informatie en/of een brochure.
Key features
  • Ideal for isolating proteins, enzymes and intact intracellular organelles
  • Powerful 3/8 HP motor. Only durable, non-toxic components contact product
  • Designed for batches up to 80g (wet wt.) in 200 ml of medium
  • Highly efficient disruption in shortest times possible
  • Sample cooling during homogenization is simple and efficient
Product specifications
  • Homogenizing chamber made of shatter-proof polycarbonate, 350 ml total volume, 200ml working
  •
  • Rotor machined from solid Teflon
  •
  • 15,800 rpm, 3/8 HP single speed motor
  •
  • 6 inch dia. footprint X 12 inch high, shipping wt. 11 lbs
  •
  • European 220 Volt, 50Hz, 400 watt version available
