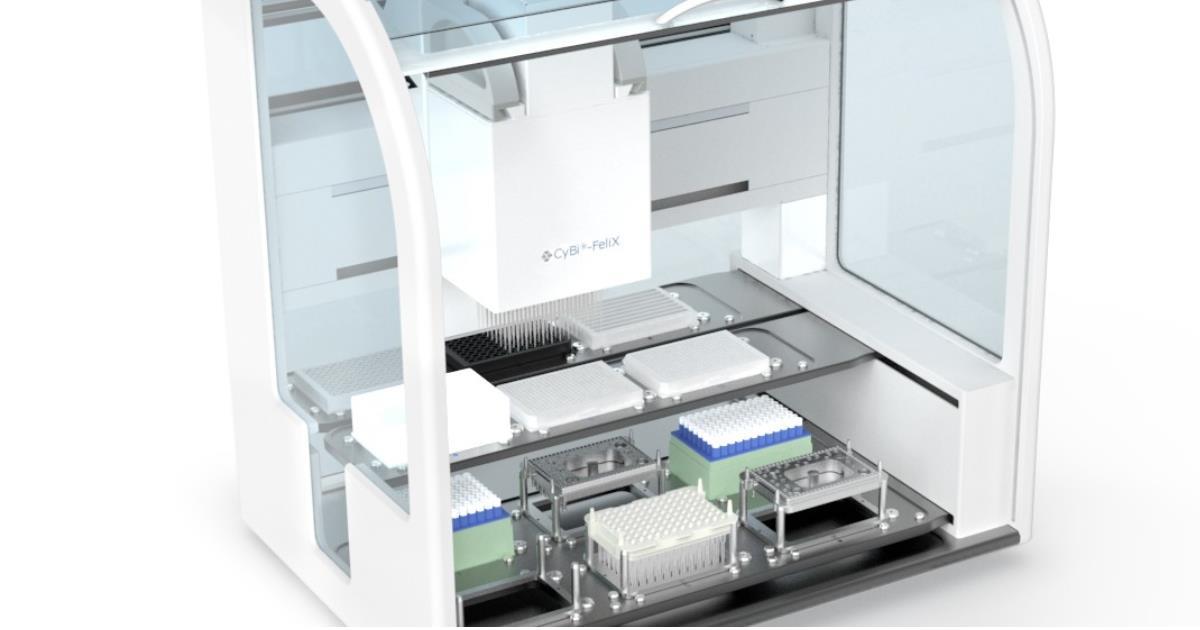

The CyBio®-FeliX 96/384 is a very flexible and compact liquid handling platform for the precise processing of whole microplates in different volume ranges with additional format possibilities. The system has 12 deck positions on two levels for microplates, tube racks, reservoirs and tips on the small footprint of 650 x 450 mm (w x d).

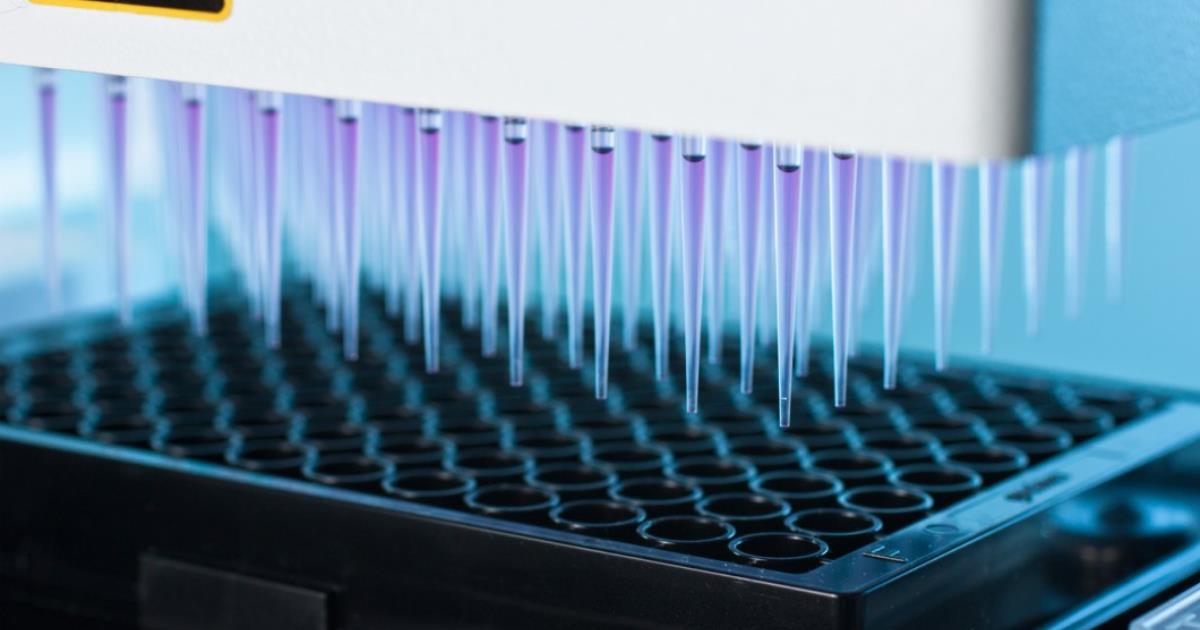

For highest precision in every volume range, there are different interchangeable pipetting heads available. Along with the parallel processing of whole 96- and 384-well microplates, the different liquid handling adapters also allow for working in single wells, rows and columns. The pickup of liquid handling adapters and tips is performed by the pipetting head without the need of manual intervention. After the pickup, each adapter is identified with optimized pipetting parameters and correct volume range set for the highest pipetting precision possible.
The CyBio®-FeliX 96/384 can be adjusted to any application requirements through the right combination of pipetting heads, accessories and tips any time. Therefore, the CyBio®-FeliX is the ideal platform for a variety of automated liquid handling tasks suitable for every laboratory.

Consumables for CyBio®-FeliX Systems
Pipetting tips for CyBio®-FeliX Systems are available in packaging units with pre-racked CyBio®-RoboTipTrays or CyBio®-TipBoxes.
Key features

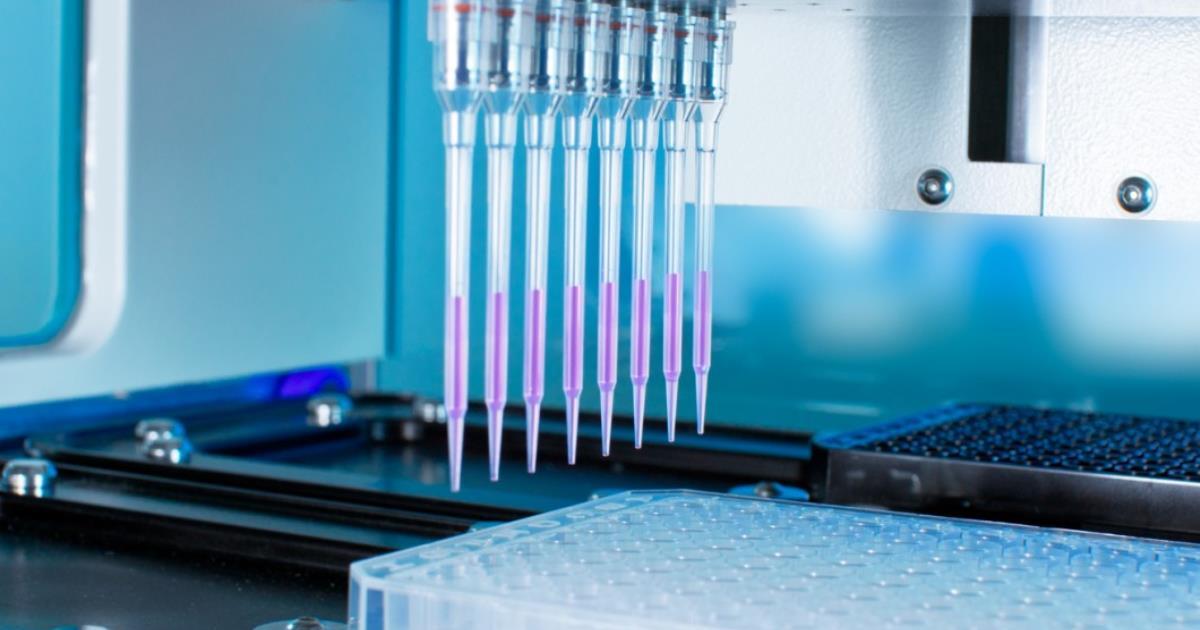

  • Automatic change between multichannel, single channel, column of row pipetting
  • Patent pending CHOICE technology succeeds in a unique, wide volume range combined within one pipetting head
  • 12 deck positions on the compact foortprint of 650 x 450 mm (w x d)
  • Interchangeable pipetting heads to configure CyBio®-FeliX for different application requirements
  • Automatic tip change combined with CyBio's proven tip sealing technology offers highest precision and accuracy
Product specifications
  • Dimensions (w x h x d)
    650 x 650 x 450 mm
  • Weight
    Base unit: approx. 46.5 kg
    Pipetting head: approx. 7 kg
  • Operating conditions
    15° C to 37° C; humidity < 85% at 30° C
  • Plate positions
    12 positions for microplates, tube racks, reservoirs and tips
  • Pipetting heads
    CyBi®-FeliX Head R 96/60µl
    CyBio®-FeliX Head R 96/250µl
    CyBio®-FeliX Head R 96/1000µl
    CyBio®-FeliX Head R 384/60µl

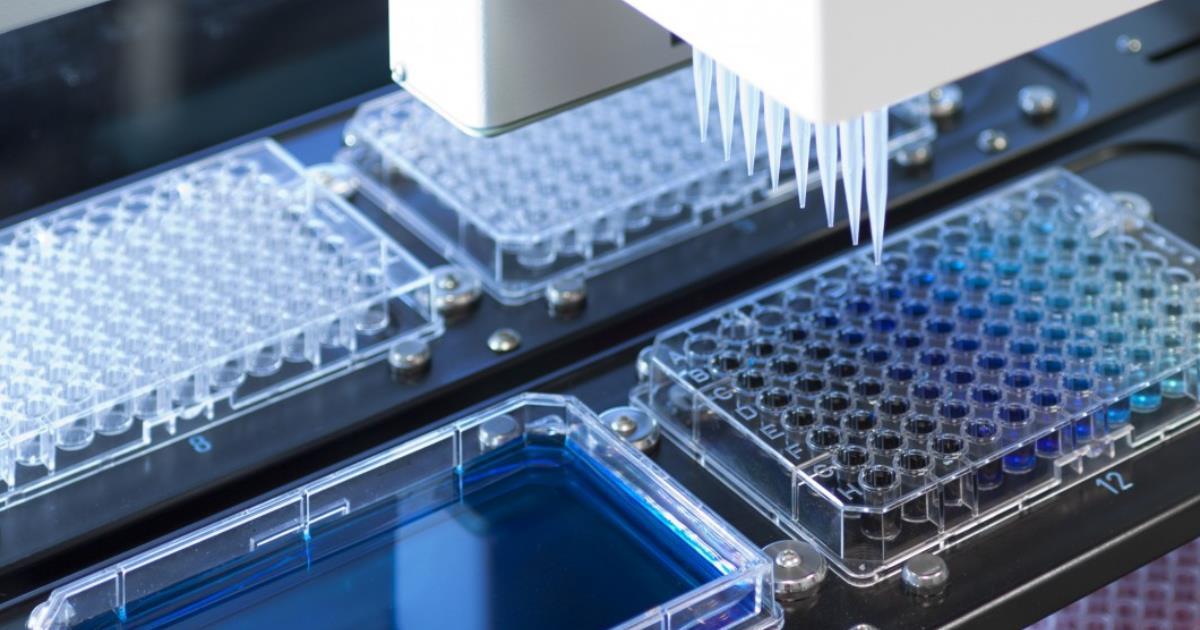

    CyBio®-FeliX Head Choice 8 and 12 channel 1-50µl
    CyBio®-FeliX Head Choice 1, 16 and 24 channel 1-50µl
    CyBio®-FeliX Head Choice 1, 8 and 12 channel 10-1000µl
Neem contact met ons op voor meer informatie
Gerelateerde producten
Laboratory automation Lab Services

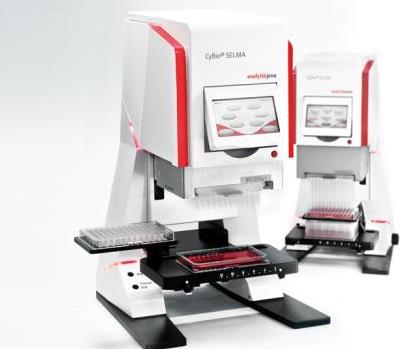

CyBio®-SELMA
Bekijk het product
Laboratory automation Lab Services

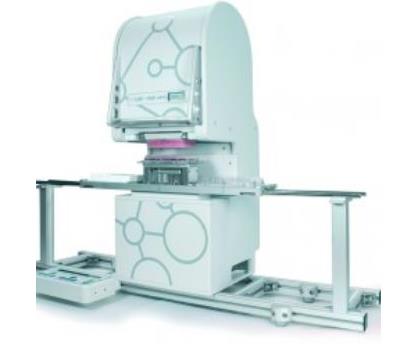

CyBio®-Well vario
